Toyota Yaris: Millimeter Wave Radar Sensor / Components
COMPONENTS

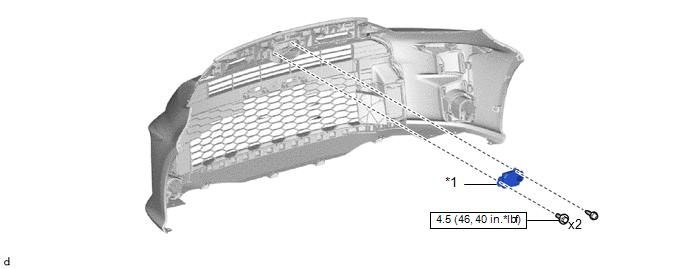

ILLUSTRATION
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are replaced during millimeter wave radar sensor assembly removal/installation are shown below...
