COMPONENTS

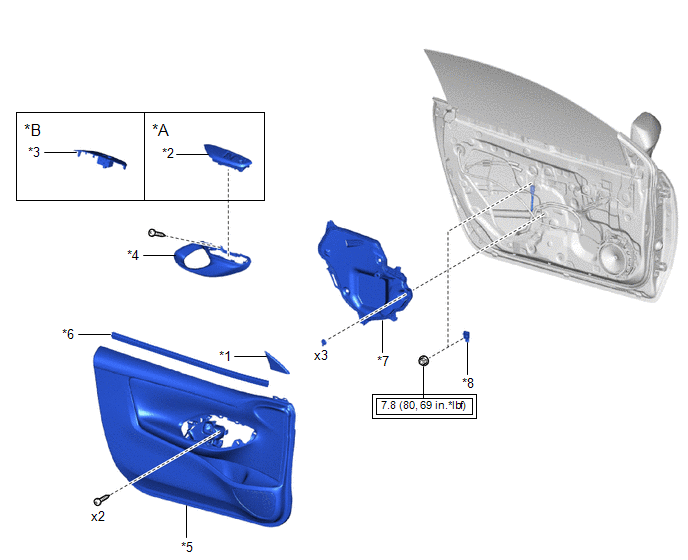

ILLUSTRATION

*A	for Driver Side	*B	for Front Passenger Side
*1	FRONT DOOR LOWER FRAME BRACKET GARNISH	*2	MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL
*3	POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL	*4	FRONT DOOR TRIM GARNISH
*5	FRONT DOOR TRIM BOARD SUB-ASSEMBLY	*6	FRONT DOOR GLASS INNER WEATHERSTRIP
*7	FRONT DOOR SERVICE HOLE COVER	*8	SIDE AIRBAG PRESSURE SENSOR
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

Side Airbag Sensor (for Front Door)

Removal

REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed, installed or replaced during the side airbag pressure sensor removal/installation are shown below...
