Toyota Yaris: Rear Seat Inner Belt Assembly / Components
COMPONENTS

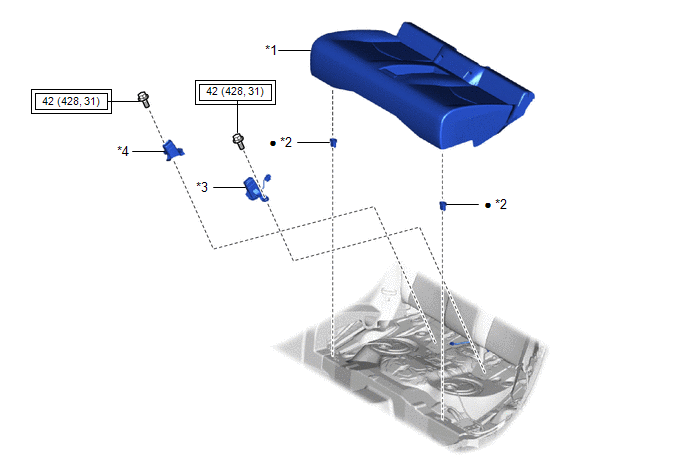

ILLUSTRATION
| *1 | BENCH TYPE REAR SEAT CUSHION ASSEMBLY | *2 | REAR SEAT CUSHION LOCK HOOK |
| *3 | REAR SEAT INNER BELT ASSEMBLY LH | *4 | REAR SEAT INNER BELT ASSEMBLY RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
REMOVAL PROCEDURE 1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY Click here
2. REMOVE REAR SEAT CUSHION LOCK HOOK Click here
3. REMOVE REAR SEAT INNER BELT ASSEMBLY LH (a) Disconnect the connector...
