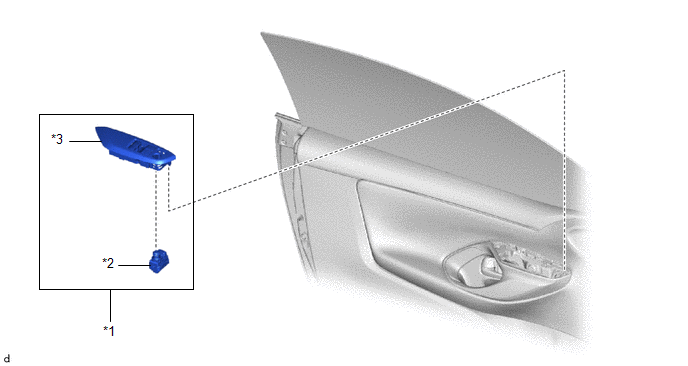

Toyota Yaris: Outer Mirror Switch / Components

Outer Mirror Switch

..

Removal

REMOVAL PROCEDURE 1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT ARMREST BASE UPPER PANEL Click here 2. REMOVE OUTER MIRROR SWITCH ASSEMBLY (a) Using a screwdriver with its tip wrapped in protective tape, disengage the claws to remove the outer mirror switch assembly...
