Toyota Yaris: Generator / Components
COMPONENTS
ILLUSTRATION
| *1 | GENERATOR WITH REGULATOR ASSEMBLY | *2 | ENGINE WIRE |
| *3 | GENERATOR SPLASH GUARD COVER ASSEMBLY | *4 | STUD BOLT |
 | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
 | N*m (kgf*cm, ft.*lbf): Specified torque |
ILLUSTRATION

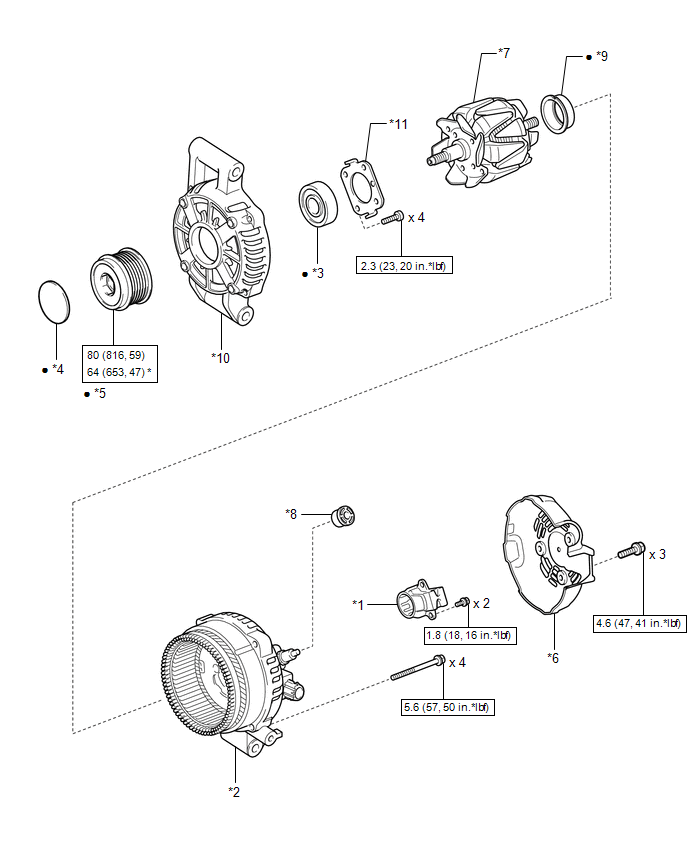

| *1 | GENERATOR BRUSH HOLDER ASSEMBLY | *2 | GENERATOR COIL ASSEMBLY |
| *3 | GENERATOR DRIVE END FRAME BEARING | *4 | GENERATOR PULLEY CAP |
| *5 | GENERATOR PULLEY WITH CLUTCH | *6 | GENERATOR REAR END COVER |
| *7 | GENERATOR ROTOR ASSEMBLY | *8 | GENERATOR TERMINAL INSULATOR |
| *9 | BEARING COVER PACKING | *10 | GENERATOR DRIVE END FRAME |
| *11 | RETAINER PLATE | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST |
| ● | Non-reusable part | - | - |
Generator
..
Removal
REMOVAL CAUTION / NOTICE / HINT HINT: When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating...
