COMPONENTS

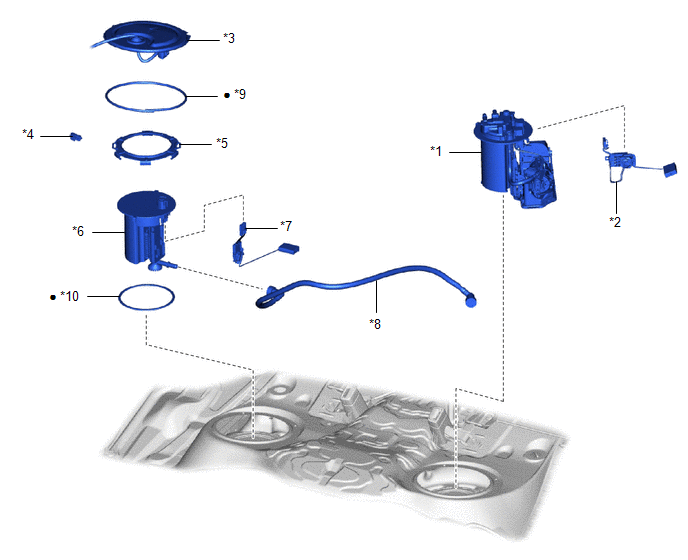

ILLUSTRATION

*1

FUEL RETURN VENT TUBE SUB-ASSEMBLY

*2

FUEL SENDER GAUGE ASSEMBLY

*3

REAR FLOOR SERVICE HOLE COVER

*4

NO. 1 FUEL TUBE CLAMP

*5

FUEL PUMP GAUGE RETAINER

*6

FUEL TANK VENT TUBE ASSEMBLY

*7

NO. 2 FUEL SENDER GAUGE ASSEMBLY

*8

FUEL RETURN VENT TUBE SUB-ASSEMBLY

*9

BUTYL TAPE

*10

GASKET

Non-reusable part

-

-

    Fuel Sender Gauge Assembly

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT CAUTION: Never perform work on fuel system components near any possible ignition sources. Vaporized fuel could ignite, resulting in a serious accident...
