COMPONENTS

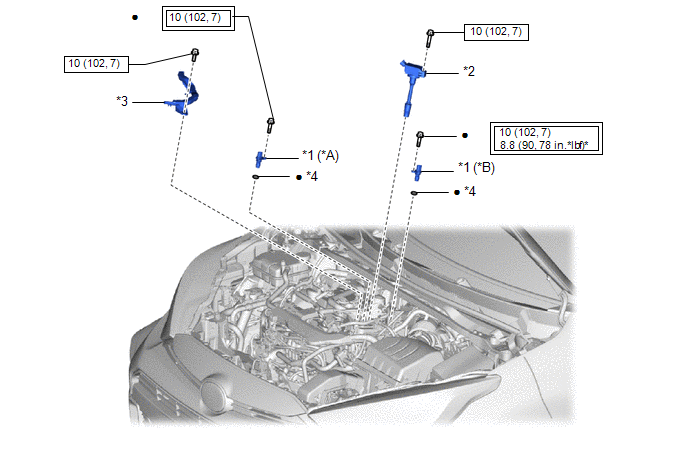

ILLUSTRATION

*A

for Intake Side

*B

for Exhaust Side

*1

CAMSHAFT POSITION SENSOR

*2

IGNITION COIL ASSEMBLY

*3

ENGINE WIRE

*4

O-RING

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with a union nut wrench

●

Non-reusable part

★

Precoated part

-

-

    Camshaft Position Sensor

    ..

    Removal

    REMOVAL PROCEDURE 1. SEPARATE ENGINE WIRE (a) Remove the bolt and engine wire. 2. REMOVE IGNITION COIL ASSEMBLY (a) Disconnect the ignition coil assembly connector...
