Toyota Yaris: Maintenance / Air Conditioning Filter

NOTICE:

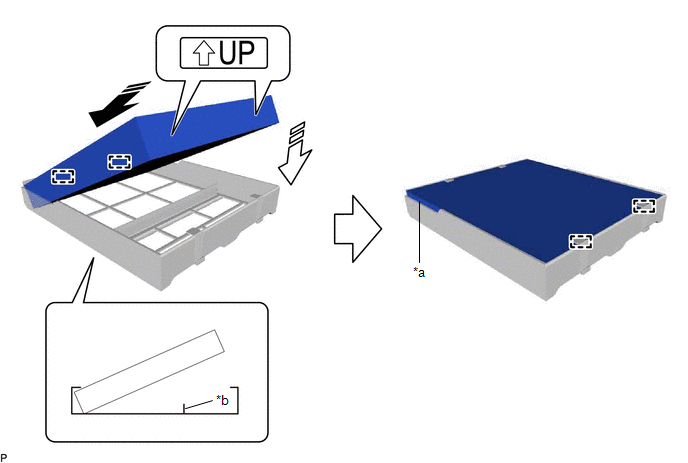

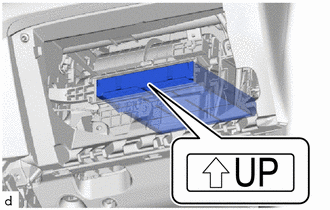

• Make sure that the "UP" marks are facing the correct direction before installing the clean air filter.

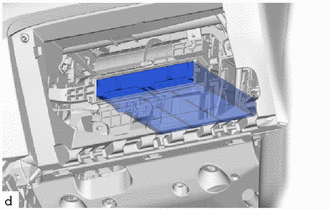

• Make sure that there is no clearance between the clean air filter and cooling unit parts and that the clean air filter is not deformed.
