Toyota Yaris: Emergency Towing / Towing Description
Toyota Yaris XP210 (2020-2024) Owner's Manual / If Trouble Arises / Emergency Towing / Towing Description
We recommend that towing be done only by your Toyota dealer or a commercial tow-truck service.
Proper lifting and towing are necessary to prevent damage to the vehicle. Government and local laws must be followed.

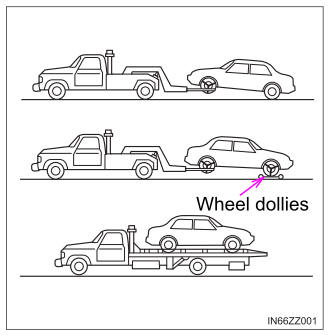

A towed vehicle usually should have its drive wheels (front wheels) off the ground. If excessive damage or other conditions prevent this, use wheel dollies.
When towing with the rear wheels on the ground, release the parking brake.
NOTICE
- Do not tow the vehicle pointed backward with driving wheels on the ground. This may cause internal damage to the transaxle.
- Do not tow with sling-type equipment. This could damage your vehicle. Use wheel-lift or flatbed equipment.
Tiedown Hooks (If equipped)
NOTICE
Do not use the front tiedown eyelet for towing the vehicle.
They have been designed only for securing the vehicle to a transport
vessel
during shipping...
