Toyota Yaris: Front Brake Flexible Hose / Removal

Toyota Yaris XP210 (2020-2022) Reapir and Service Manual / General / Maintenance / Front Brake Flexible Hose / Removal

REMOVAL

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT WHEEL

Click here

2. DRAIN BRAKE FLUID

NOTICE:

If brake fluid leaks onto any painted surface, immediately wash it off.

3. REMOVE FRONT FLEXIBLE HOSE

(a) Remove the union bolt and gasket, and disconnect the front flexible hose from the front disc brake cylinder assembly.

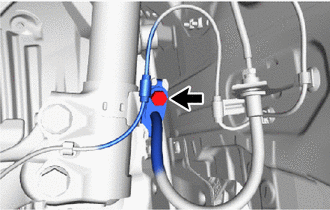

(b) Remove the bolt and separate the front flexible hose from the front shock absorber assembly.

(c) Using a union nut wrench, disconnect the brake line while holding the front flexible hose with a wrench.

NOTICE:

  • Do not kink or damage the brake line.
  • Do not allow any foreign matter such as dirt or dust to enter the brake line from the connecting parts.

(d) Remove the clip and front flexible hose from the vehicle body.

    Components

    COMPONENTS ILLUSTRATION *1 FRONT FLEXIBLE HOSE *2 GASKET *3 BRAKE LINE *4 FRONT SPEED SENSOR *5 UNION BOLT - - Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft...

    Installation

    INSTALLATION CAUTION / NOTICE / HINT NOTICE: Because the left and right front flexible hoses are not interchangeable, verify the part number when installing the front flexible hoses...
