Toyota Yaris: Windows / Opening/Closing Windows

Toyota Yaris XP210 (2020-2026) Owner's Manual / Before Driving / Windows / Opening/Closing Windows

The window opens while the switch is pressed and it closes while the switch is pulled up with the ignition switched ON. Do not open or close three or more windows at the same time.

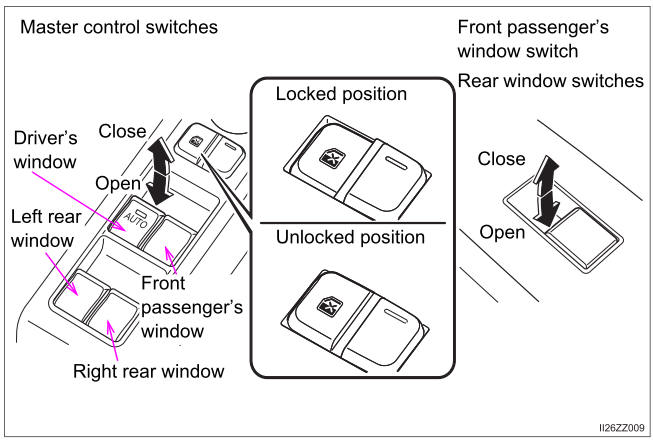

The front passenger’s side and rear windows can be opened/closed when the power window lock switch on the driver’s door is in the unlock position. Keep this switch in the locked position while children are in the vehicle.

Toyota Yaris. Opening/Closing Windows

Opening/Closing windows

A power window may no longer open/close if you continue to press the switch after fully opening/closing the power window. If the power window does not open/close, wait a moment and then operate the switch again.
The passenger windows may be opened or closed using the master control switches on the driver’s door.
The power window can be operated for about 40 seconds after the ignition is switched from ON to ACC or off with all doors closed. If any door is opened, the power window will stop operating.
For engine-off operation of the power window, the switch must be held up firmly throughout window closure because the auto-closing function will be inoperable.

Windows

The windows can be opened/closed by operating the power window switches. When driving with only one of the rear windows open, your ears might experience a resonating sound...

Auto-opening/closing

To fully open the window automatically, press the switch completely down, then release. The window will fully open automatically. To fully close the window automatically, pull the switch completely up, then release...
