Components

COMPONENTS

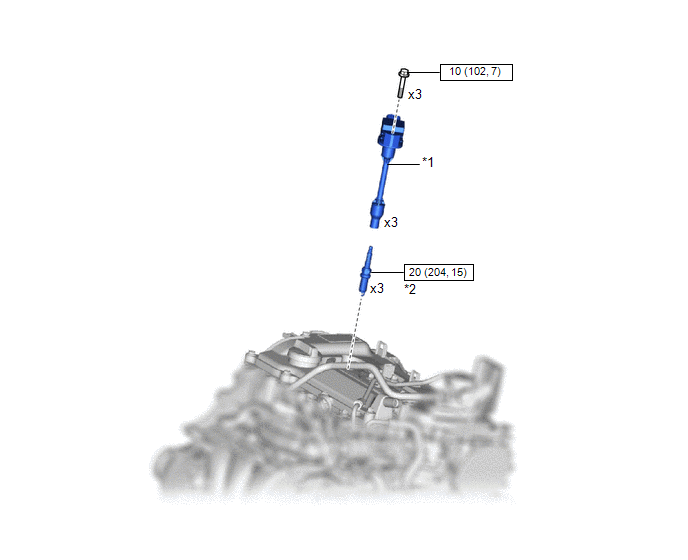

ILLUSTRATION

*1

IGNITION COIL ASSEMBLY

*2

SPARK PLUG

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during ignition coil assembly or spark plug removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

  • Replacement of ignition coil assembly
  • Replacement of spark plug

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

PROCEDURE

1. REMOVE IGNITION COIL ASSEMBLY

Click here

2. REMOVE SPARK PLUG

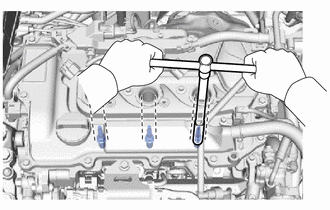

(a) Remove the 3 spark plugs from the cylinder head sub-assembly.

NOTICE:

If a spark plug has been struck or dropped, replace it.

HINT:

Arrange the removed parts in the correct order.

Installation

INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL SPARK PLUG

HINT:

Perform "Inspection After Repair" after replacing a spark plug.

Click here

(a) Install the 3 spark plugs to the cylinder head sub-assembly.

Torque:

20 N·m {204 kgf·cm, 15 ft·lbf}

NOTICE:

If a spark plug has been struck or dropped, replace it.

HINT:

Install the same parts to their original positions.

2. INSTALL IGNITION COIL ASSEMBLY

Click here

3. PERFORM INITIALIZATION

(a) Perform "Inspection After Repair" after replacing an ignition coil assembly or spark plug.

Click here
