Toyota Yaris: Seats / Front Seat

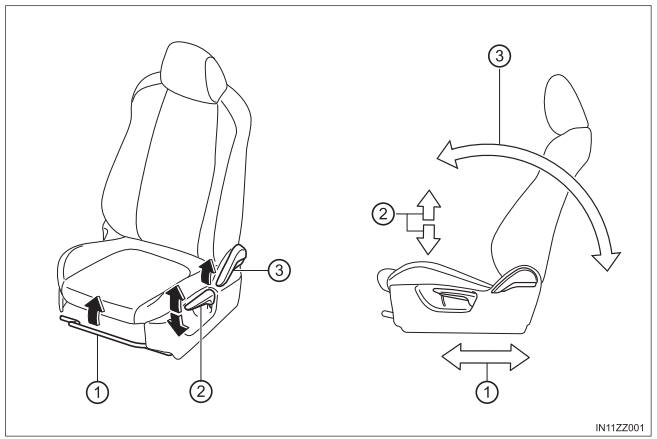

Seat Operation
- Seat Slide
To move a seat forward or backward, raise the lever and
slide the seat to
the desired position and release the lever.
Make sure the lever returns to its original position and the seat is
locked in
place by attempting to push it forward and backward.
- Height Adjustment (Driver’s Seat)
To adjust the seat height, move the
lever up or down.
- Seat Recline
To change the seatback angle, lean forward slightly while
raising the lever.
Then lean back to the desired position and release the lever.
Make sure the lever returns to its original position and the seatback is
locked in place by attempting to push it forward and backward.

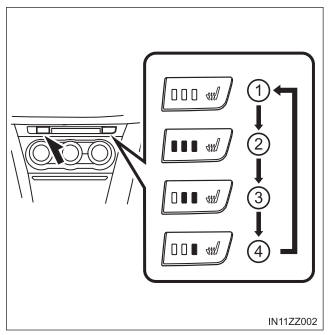

Seat Warmer (if equipped)
The front seats are electrically heated. The ignition must be switched ON.
Press the seat warmer switch to
illuminate the indicator light while
the ignition is switched ON. The
mode changes as follows each
time the seat warmer switch is
pressed.
- OFF
- High
- Mid
- Low
- If the ignition is switched off while the seat warmer is operating (High,
Mid or
Low) and then switched ON again, the seat warmer will automatically operate
at the temperature set before switching off the ignition.
- Use the seat warmer when the engine is running. Leaving the seat warmer
on for long periods with the engine not running could cause the battery
power to be depleted.
- The temperature of the seat warmer cannot be adjusted beyond High, Mid
and Low because the seat warmer is controlled by a thermostat.
WARNING
Be careful when using the seat warmer
The heat from the seat warmer may be too hot for some people, as
indicated below, and could cause a low-temperature burn.
- Infants, small babies, elderly people, and physically challenged
people
- People with delicate skin
- People who are excessively fatigued
- People who are intoxicated
- People who have taken sleep-inducing medicine such as sleeping
pills or cold medicine
Do not use the seat warmer with anything having high
moisture-retention ability such as a blanket or cushion on the seat
The seat may be heated excessively and cause a low-temperature burn.
WARNING
Do not use the seat warmer even when taking a short nap in the
vehicle
The seat may be heated excessively and cause a low-temperature burn.
Do not place heavy objects with sharp projections on the seat, or
insert
needles or pins into it
This could cause the seat to become excessively heated and result in
injury
from a minor burn.
NOTICE
Do not use solvents to clean the seat. It may damage the seat surface and
the heater.
When returning a rear seat to its original position, place the seat belt in
its normal position. Verify that the seat belt pulls out and retracts.
WARNING
Make sure the adjustable components of a seat are locked in place
Adjustable seats and seatbacks that are not securely locked are
dangerous...
