Toyota Yaris: Maintenance / Ea67f Manual Transaxle Oil
Components
COMPONENTS

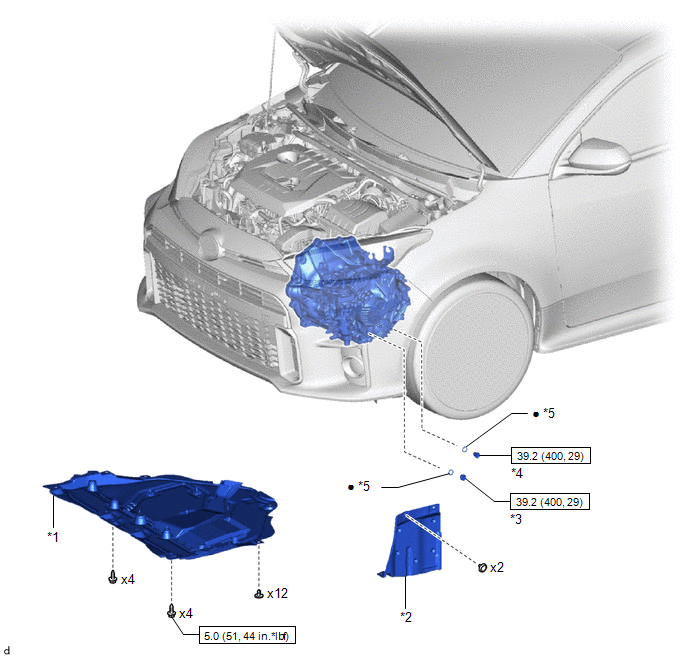

ILLUSTRATION
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | ENGINE UNDER COVER LH |
| *3 | MANUAL TRANSMISSION FILLER PLUG | *4 | MANUAL TRANSMISSION DRAIN PLUG |
| *5 | GASKET | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
Replacement
REPLACEMENT
PROCEDURE
1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
2. REMOVE ENGINE UNDER COVER LH
Click here
3. DRAIN MANUAL TRANSAXLE OIL

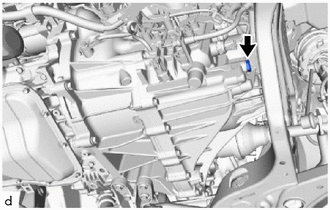

| (a) Remove the manual transmission filler plug and gasket. | |

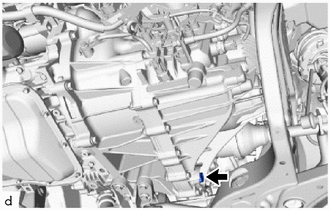

| (b) Remove the manual transmission drain plug and gasket to drain the manual transaxle oil. | |
(c) Install a new gasket and the manual transmission drain plug.
Torque:
39.2 N·m {400 kgf·cm, 29 ft·lbf}
4. ADD MANUAL TRANSAXLE OIL

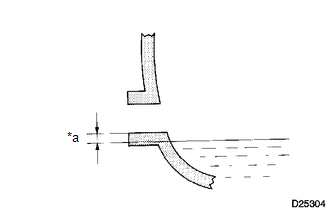

| (a) Add manual transaxle oil until the oil level is between 0 and 5 mm (0.197 in.) from the bottom lip of the manual transmission filler plug opening. Manual Transaxle Oil: "Toyota Genuine Manual Transmission Gear Oil LV GL-4 75W" or equivalent Standard Capacity: w/ LSD 2.0 liters (2.1 US qts, 1.8 Imp. qts) w/o LSD 2.1 liters (2.2 US qts, 1.8 Imp. qts) NOTICE: Using manual transaxle oil other than the specified oil may cause abnormal noise or vibration, or damage the transfer of your vehicle. |
| | *a | 0 to 0.5 mm (0 to 0.0197 in.) | | |
| (b) Install a new gasket and the manual transmission filler plug. Torque: 39.2 N·m {400 kgf·cm, 29 ft·lbf} NOTICE: -
When adding manual transaxle oil, make sure that the vehicle is level.
-
An excessively large or small amount of manual transaxle oil may cause problems.
-
After adding manual transaxle oil, drive the vehicle and recheck the oil level.
| |
5. INSPECT FOR MANUAL TRANSAXLE OIL LEAK
6. INSTALL ENGINE UNDER COVER LH
Click here
7. INSTALL NO. 1 ENGINE UNDER COVER ASSEMBLY
Click here
