Toyota Yaris: Clutch Master Cylinder / Components
COMPONENTS

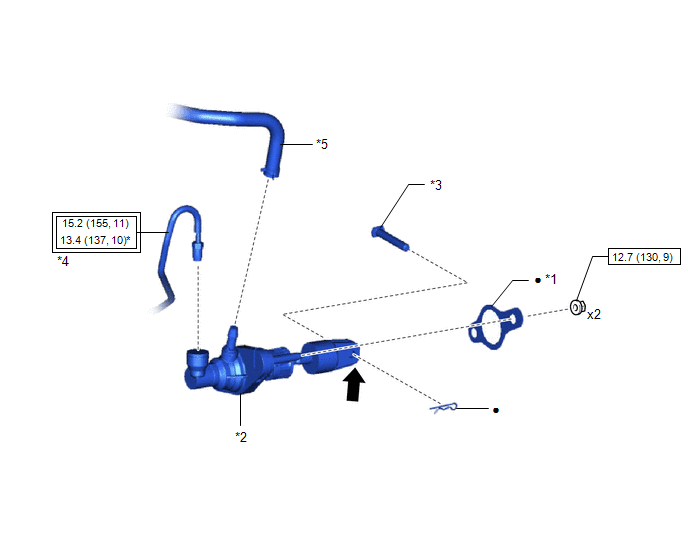

ILLUSTRATION
| *1 | CLUTCH MASTER CYLINDER GASKET | *2 | CLUTCH MASTER CYLINDER ASSEMBLY |
| *3 | CLUTCH MASTER CYLINDER PUSH ROD CLEVIS WITH HOLE PIN | *4 | CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE |
| *5 | NO. 1 CLUTCH RESERVOIR HOSE | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |
| N*m (kgf*cm, ft.*lbf): Specified torque |
| * | For use with union nut wrench | ● | Non-reusable part |
| MP grease | - | - |
