Toyota Yaris: G16e-gts Coolant / Components

Toyota Yaris XP210 (2020-2026) Reapir and Service Manual / General / Maintenance / G16e-gts Coolant / Components

COMPONENTS

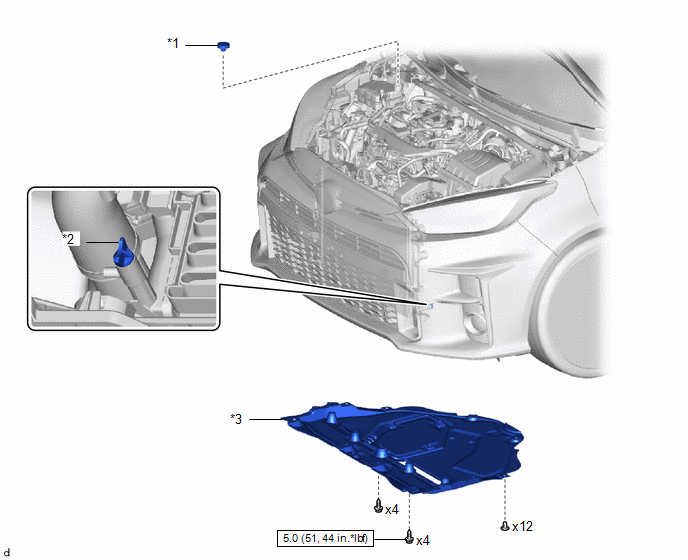

ILLUSTRATION

*1	RESERVE TANK CAP	*2	RADIATOR DRAIN COCK PLUG
*3	NO. 1 ENGINE UNDER COVER ASSEMBLY	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

REPLACEMENT PROCEDURE 1. SEPARATE NO. 1 ENGINE UNDER COVER ASSEMBLY Click here 2. DRAIN ENGINE COOLANT CAUTION: When engine coolant is hot, do not remove the reserve tank cap or the radiator drain cock plug...
