COMPONENTS

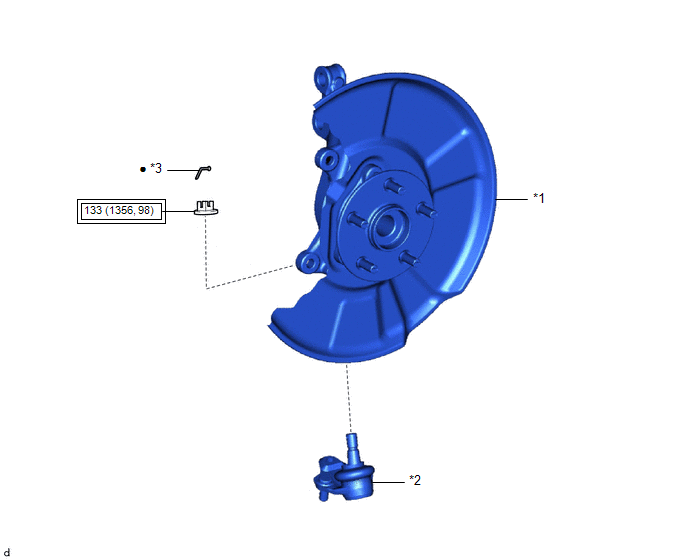

ILLUSTRATION

*1

FRONT AXLE ASSEMBLY

*2

FRONT LOWER BALL JOINT ASSEMBLY

*3

COTTER PIN

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

Non-reusable part

    Front Lower Ball Joint

    ..

    On-vehicle Inspection

    ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT FRONT LOWER BALL JOINT ASSEMBLY (a) Check for looseness. (1) Lift up the vehicle. (2) Move the front lower No...
