Toyota Yaris: Integration Relay / Components

Toyota Yaris XP210 (2020-2022) Reapir and Service Manual / Power Source & Network / Power Distribution / Integration Relay / Components

COMPONENTS

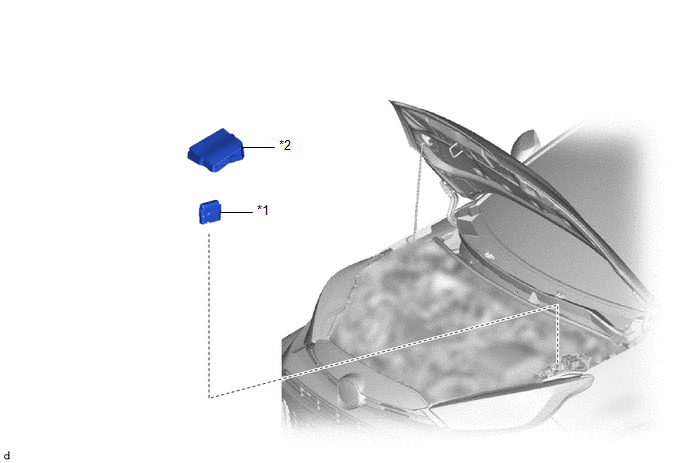

ILLUSTRATION

*1

SEMICONDUCTOR POWER INTEGRATION ECU

*2

NO. 1 RELAY BLOCK COVER

    Integration Relay

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT HINT: When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating...
