Toyota Yaris: Seat Belt Warning System / Parts Location
PARTS LOCATION
ILLUSTRATION

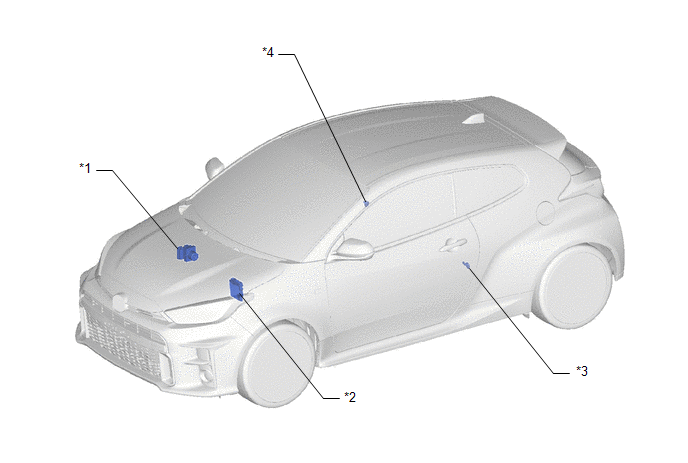

| *1 | BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU | *2 | ECM |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
ILLUSTRATION

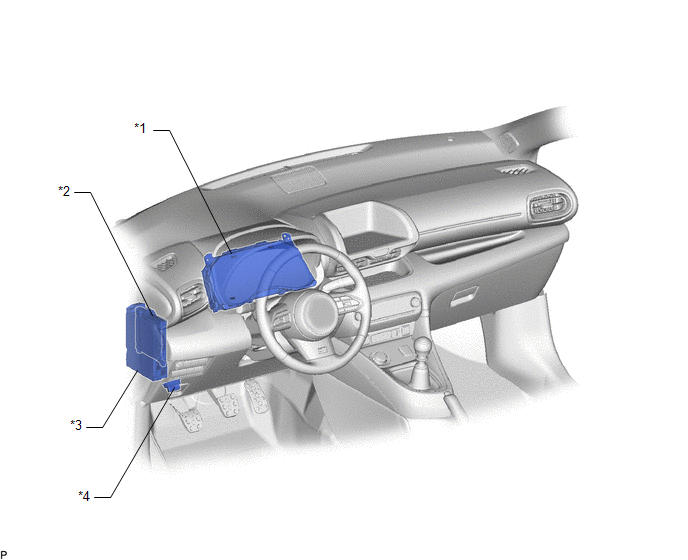

| *1 | COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER - SEAT BELT WARNING LIGHT - REAR SEAT BELT WARNING LIGHT | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | POWER DISTRIBUTION BOX ASSEMBLY | *4 | DLC3 |
ILLUSTRATION

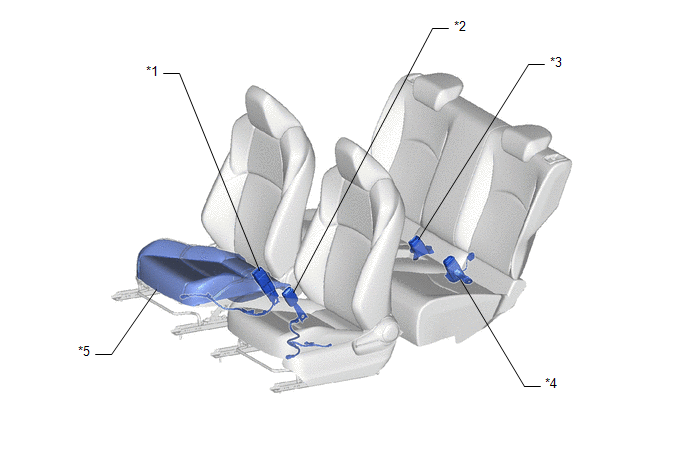

| *1 | FRONT SEAT INNER BELT ASSEMBLY RH | *2 | FRONT SEAT INNER BELT ASSEMBLY LH |
| *3 | REAR SEAT INNER BELT ASSEMBLY RH | *4 | REAR SEAT INNER BELT ASSEMBLY LH |
| *5 | SEPARATE TYPE FRONT SEAT CUSHION PAD RH - OCCUPANT DETECTION SENSOR | - | - |
