PARTS LOCATION

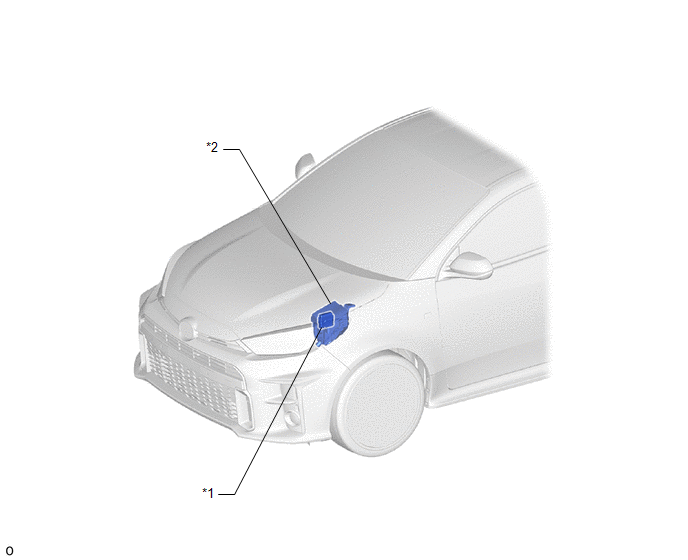

ILLUSTRATION

*1

SEMICONDUCTOR POWER INTEGRATION ECU

*2

NO. 1 ENGINE ROOM RELAY BLOCK

- STD P/I NO. 1 FUSE

- INP STD NO. 1-1 FUSE

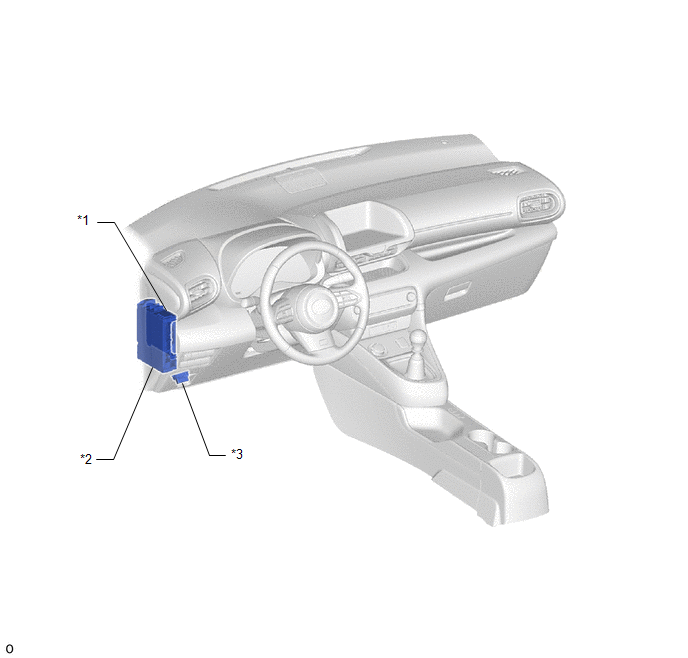

ILLUSTRATION

*1

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*2

POWER DISTRIBUTION BOX ASSEMBLY

- ECU-IGR NO. 1 FUSE

*3

DLC3

-

-

    Precaution

    PRECAUTION PRECAUTION FOR SEMICONDUCTOR POWER INTEGRATION ECU (a) Do not remove or install the semiconductor power integration ECU and power distribution box assembly with the negative (-) auxiliary battery terminal connected...

    System Diagram

    S..
