Toyota Yaris: G16e-gts (fuel) / Fuel Pump Ecu
Components
COMPONENTS

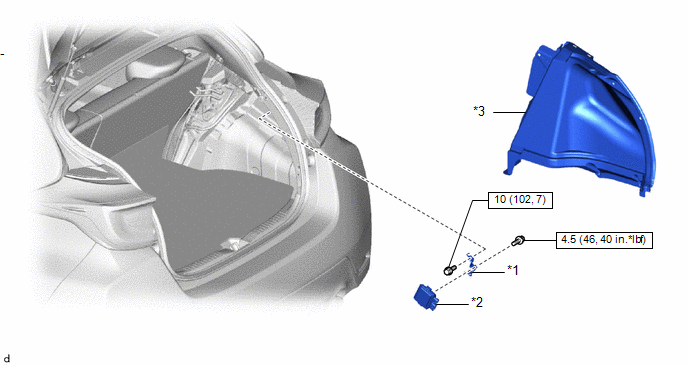

ILLUSTRATION
| *1 | FUEL PUMP CONTROL ECU BRACKET | *2 | FUEL PUMP CONTROL ECU |
| *3 | DECK TRIM SIDE PANEL ASSEMBLY RH | - | - |
 | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Installation
INSTALLATION
PROCEDURE
1. INSTALL FUEL PUMP CONTROL ECU BRACKET
(a) Install the fuel pump control ECU bracket to the fuel pump control ECU with the 2 bolts.
Torque:
4.5 N·m {46 kgf·cm, 40 in·lbf}
NOTICE:
Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.
2. INSTALL FUEL PUMP CONTROL ECU
(a) Install the fuel pump control ECU with the bolt.
Torque:
10 N·m {102 kgf·cm, 7 ft·lbf}
NOTICE:
Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.
(b) Connect the 2 fuel pump control ECU connectors.
3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
HINT:
Use the same procedure described for the RH side.
