COMPONENTS

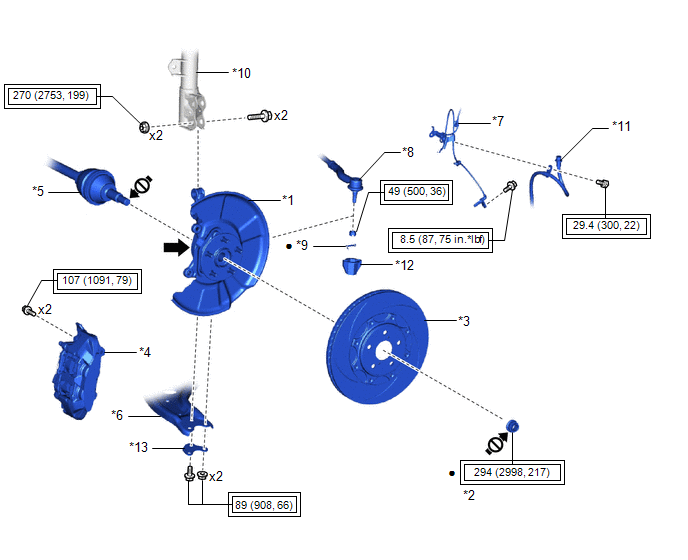

ILLUSTRATION

*1

FRONT AXLE ASSEMBLY

*2

FRONT AXLE SHAFT NUT

*3

FRONT DISC

*4

FRONT DISC BRAKE CALIPER ASSEMBLY

*5

FRONT DRIVE SHAFT ASSEMBLY

*6

FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

*7

FRONT SPEED SENSOR

*8

TIE ROD END SUB-ASSEMBLY

*9

COTTER PIN

*10

FRONT SHOCK ABSORBER ASSEMBLY

*11

FRONT FLEXIBLE HOSE

*12

STEERING KNUCKLE SEAL

*13

INNER NO. 1 ARM ATTACHMENT PLATE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

Non-reusable part

Toyota Body Grease W

Do not apply lubricants to the threaded parts

ILLUSTRATION

*1

FRONT AXLE HUB SUB-ASSEMBLY

*2

FRONT DISC BRAKE DUST COVER

*3

STEERING KNUCKLE

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf)

-

-

    Front Axle Hub

    ..

    On-vehicle Inspection

    ON-VEHICLE INSPECTION CAUTION / NOTICE / HINT HINT: The following procedure is for the LH side. Use the same procedure for the RH side and LH side...
