DESCRIPTION

If the entry lock and wireless door lock operations cannot be performed, the smart door control receiver assembly may be malfunctioning, or there may be wave interference or problems in the communication which is used for the entry and wireless function between the smart door control receiver assembly and certification ECU (smart key ECU assembly).

WIRING DIAGRAM

CAUTION / NOTICE / HINT

NOTICE:

  • When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select the vehicle type under manual mode and enter the following menus: Body Electrical / Smart Key. While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
  • The smart key system (for Entry Function) uses the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart key system (for Entry Function) after confirming that the communication systems are functioning properly.

    Click here

  • Before replacing the certification ECU (smart key ECU assembly) or main body ECU (multiplex network body ECU), refer to Precaution.

    Click here

  • Check that there are no electrical key transmitter sub-assemblies in the vehicle.
  • Before performing the inspection, check that DTC B124296 (wireless door lock control) is not output.

    Click here

  • After repair, confirm that no DTCs are output.
  • Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE

1.

INSPECT AUXILIARY BATTERY VOLTAGE

(a) Measure the auxiliary battery voltage with the ignition switch off.

Standard Voltage:

11 to 14 V

HINT:

It may be possible to tell whether the auxiliary battery is discharged by operating the horn.

If the voltage is below 11 V, recharge or replace the auxiliary battery before proceeding to the next step.

NEXT

2.

CHECK ENTRY OPERATION AND WIRELESS OPERATION

(a) Check the operation of the entry lock and unlock functions, and wireless door lock function.

(1) Check that the entry unlock function.

  1. Turn the ignition switch off.
  2. Open and close the driver door.
  3. With the electrical key transmitter sub-assembly outside of the vehicle, press the lock switch of the electrical key transmitter sub-assembly to lock all of the doors.
  4. Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly RH and approximately 0.3 m (0.984 ft.) from the driver door.
  5. Check that the LED of the electrical key transmitter sub-assembly blinks.

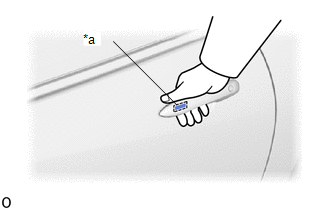

  6. Touch the unlock sensor on the backside of the front door outside handle assembly RH for 2 seconds or more.*
  • *: Perform this step 3 seconds or more after performing step (3).

HINT:

  • When checking the operation of the unlock sensor again, make sure to perform the procedure from step (1).
  • Perform the same inspection for the front passenger door.

*a

Unlock Sensor (Backside)

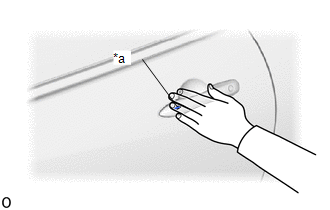

(2) Check that the entry lock function.

  1. Turn the ignition switch off.
  2. Open and close the driver door.
  3. Hold the electrical key transmitter sub-assembly at the same height as the door outside handle assembly RH and approximately 0.3 m (0.984 ft.) from the driver door.
  4. Touch the lock sensor of the front door outside handle assembly RH (groove on the front door outside handle) with 2 or more fingers for 2 seconds or more.

    HINT:

    • If the door does not lock even when touching the lock sensor for 2 seconds or more, touch it with your palm.
    • When checking the operation of the lock sensor again, make sure to perform the procedure from step (1).
    • When checking the operation of the entry lock function several times, it can be operated up to 2 times consecutively. To operate the function 3 times or more consecutively, the doors need to be unlocked once. However, this is only for the entry lock function, other door lock operations, such as a wireless door lock operation can be performed consecutively.
    • Perform the same inspection for the front passenger door.

*a

Lock Sensor

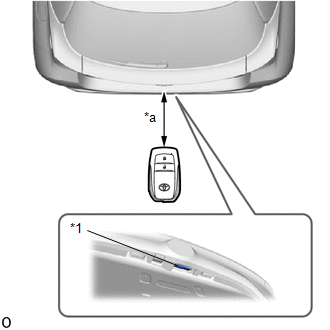

(3) Check the entry back door open function.

  1. With the back door closed and locked, press the lock switch of the back door opener switch assembly while carrying the electrical key transmitter sub-assembly and check that the back door opens.

*1

Back Door Opener Switch Assembly (Open Switch)

*a

0.7 to 1 m (2.30 to 3.28 ft.)

(4) Check the entry back door lock function.

  1. With the back door closed and unlocked, press the lock switch of the back door opener switch assembly while carrying the electrical key transmitter sub-assembly outside of the vehicle and check that the back door locks.

*1

Back Door Opener Switch Assembly (Lock Switch)

*a

0.3 m (0.984 ft.)

(5) Check that the wireless door lock function.

Click here

Result

Proceed to

All door entry lock/unlock functions and wireless functions do not operate

A

All door entry lock/unlock functions do not operate, but wireless functions operate

B

Entry lock/unlock functions do not operate for one or more doors, but wireless functions operate

Entry lock function does not operate for one or more doors, but entry unlock and wireless functions operate

Entry unlock function does not operate for one or more doors, but entry lock and wireless functions operate

All entry and wireless functions operate

C

B

GO TO PROBLEM SYMPTOMS TABLE

C

GO TO CHECK FOR INTERMITTENT PROBLEMS (OPERATION HISTORY)

A

3.

CHECK DOOR AJAR WARNING

(a) When the doors are locked by operating the entry lock function with all doors closed, check that the door ajar warning operates.

HINT:

Be sure to check the following before performing the procedure.

  • Ignition switch is off.
  • All the doors is close.
  • The lock sensor is on or lock switch is pressed on the electrical key transmitter sub-assembly.
  • Electrical key transmitter sub-assembly is in the vehicle exterior detection area.

Result

Proceed to

The wireless buzzer does not sound

A

The wireless buzzer sounds

B

B

GO TO LIGHTING SYSTEM (Proceed to Door Courtesy Switch Circuit)

A

4.

CHECK POWER DOOR LOCK CONTROL SYSTEM

(a) When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation.

Click here

Result

Proceed to

Power door lock function operates normally

A

Power door lock function does not operate normally

B

B

GO TO POWER DOOR LOCK CONTROL SYSTEM

A

5.

CHECK KEY DIAGNOSTIC MODE

(a) Check the following antennas in key diagnostic mode.

Body Electrical > Smart Key > Utility

Tester Display

Communication Check(Key Diag Mode)

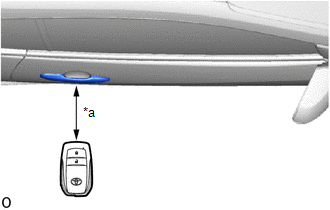

(1) Check the electrical key antenna (for driver door):

When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly RH, check that the wireless buzzer sounds.

HINT:

  • Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.
  • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

*a

0.7 to 1 m (2.30 to 3.28 ft.)

(2) Check the electrical key antenna (for front passenger door):

When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the front door outside handle assembly LH, check that the wireless buzzer sounds.

HINT:

  • Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.
  • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

*a

0.7 to 1 m (2.30 to 3.28 ft.)

(3) Check the No. 1 indoor electrical key antenna assembly (front floor):

When the electrical key transmitter sub-assembly is at either inspection point, check that the wireless buzzer sounds.

HINT:

  • Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.
  • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

*a

Inspection Point

(4) Check the No. 2 indoor electrical key antenna assembly (rear floor):

When the electrical key transmitter sub-assembly is at either inspection point, check that the wireless buzzer sounds.

HINT:

  • Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.
  • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

*a

Inspection Point

(5) Check the electrical key antenna (outside luggage compartment):

When the electrical key transmitter sub-assembly is brought within 0.7 to 1 m (2.30 to 3.28 ft.) of the electrical key antenna (outside luggage compartment), check that the wireless buzzer sounds.

HINT:

  • Select either channel 1 or channel 2 and perform the key diagnostic mode inspection for each channel.
  • If the buzzer sounds with [CH1] displayed but not with [CH2], the electrical key transmitter sub-assembly cannot be detected by channel 2 due to a malfunction, such as wave interference.

OK:

Wireless buzzer sounds.

*a

0.7 to 1 m (2.30 to 3.28 ft.)

Result

Proceed to

Key diagnostic mode inspections fail for both channels

A

Key diagnostic mode inspections succeed for both channels

B

Key diagnostic mode inspection succeeds for only one of the channels

C

B

GO TO STEP 18

C

GO TO STEP 26

A

6.

CHECK WAVE ENVIRONMENT

(a) Bring the electrical key transmitter sub-assembly near the smart door control receiver assembly and perform a wireless operation 2 or more times*.

  • *: When the wireless function is operated, channel 1 and 2 are used alternately. If the first wireless operation is performed successfully and the second wireless operation fails, wave interference may be occurring for either channel.

HINT:

  • When the electrical key transmitter sub-assembly is brought near the smart door control receiver assembly, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
  • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
  • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
  • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

Result

Proceed to

Wireless function does not operate normally

A

Wireless function operates normally

B

B

AFFECTED BY WAVE INTERFERENCE

A

7.

CHECK TRANSMITTER BATTERY

(a) Check the transmitter battery level of the electrical key transmitter sub-assembly that was checked first.

(1) Press and hold the lock switch of the electrical key transmitter sub-assembly for 5 seconds and check the number of times that the LED illuminates.

HINT:

  • The electrical key transmitter sub-assembly sends voltage information to the certification ECU (smart key ECU assembly) when it is being used. "Yes" is displayed for the Data List item "Key Low Battery" when this voltage information indicates 2.2 V or less.

    Click here

  • Even if the transmitter battery is depleted, it is still possible to start the engine by holding the electrical key transmitter sub-assembly near the engine switch, depressing the brake pedal and pressing the engine switch.

Result

Proceed to

LED illuminates 3 times or more when switch is pressed and held

A

LED does not illuminate when switch is pressed and held

B

LED illuminates once or twice but not a third time

C

B

GO TO STEP 17

C

REPLACE TRANSMITTER BATTERY

A

8.

CHECK ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

(a) Check if there is another electrical key transmitter sub-assembly available that is already registered to the vehicle.

Result

Proceed to

Another registered electrical key transmitter sub-assembly is not available

A

Another registered electrical key transmitter sub-assembly is available

B

B

GO TO STEP 10

A

9.

ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY REGISTRATION (NEW ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY)

(a) Register a new electrical key transmitter sub-assembly.

NEXT

10.

CHECK ENTRY OPERATION

(a) Using another registered electrical key transmitter sub-assembly, check that the function operates normally.

Result

Proceed to

Entry function does not operate normally

A

Entry function operates normally

B

B

END (ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY WAS DEFECTIVE)

A

11.

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SMART DOOR CONTROL RECEIVER ASSEMBLY AND BODY GROUND)

(a) Disconnect the O47 certification ECU (smart key ECU assembly) connector.

(b) Disconnect the O48 smart door control receiver assembly connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O47-21 (RCO) - O48-4 (+5)

Always

Below 1 Ω

O47-11 (RDAM) - O48-5 (DATA)

Always

Below 1 Ω

O47-12 (CSEL) - O48-2 (CSEL)

Always

Below 1 Ω

O48-1 (GND) - Body ground

Always

Below 1 Ω

O47-21 (RCO) or O48-4 (+5) - Other terminals and body ground

Always

10 kΩ or higher

O47-11 (RDAM) or O48-5 (DATA) - Other terminals and body ground

Always

10 kΩ or higher

O47-12 (CSEL) or O48-2 (CSEL) - Other terminals and body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

12.

CHECK ENTRY OPERATION

(a) Connect all connectors and check that the function operates normally.

Click here

Result

Proceed to

Entry function does not operate normally

A

Entry function operates normally

B

B

END (CONNECTOR WAS NOT CONNECTED SECURELY)

A

13.

CHECK SMART DOOR CONTROL RECEIVER ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O48-1 (GND) - Body ground

Always

Below 1 Ω

*a

Component with harness connected

(Smart Door Control Receiver Assembly)

(b) Using an oscilloscope, check the waveform.

OK:

Tester Connection

Condition

Tool Setting

Specified Condition

O48-5 (DATA) - O48-1 (GND)

Procedure:

  1. Ignition switch off
  2. All doors locked
  3. Electrical key transmitter sub-assembly not inside vehicle
  4. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
  5. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed

5 V/DIV., 500 ms./DIV.

Pulse generation

(See waveform 1)

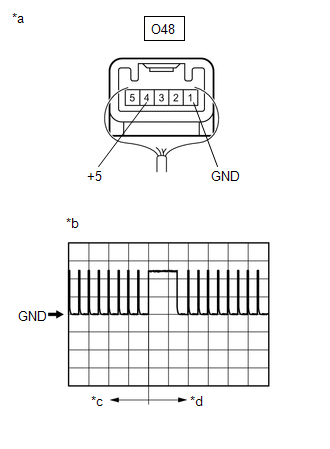

*a

Component with harness connected

(Smart Door Control Receiver Assembly)

*b

Waveform 1

*c

Before lock or unlock switch of electrical key transmitter sub-assembly pressed

*d

After lock or unlock switch of electrical key transmitter sub-assembly pressed

NG

REPLACE SMART DOOR CONTROL RECEIVER ASSEMBLY

OK

14.

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

O48-2 (CSEL) - O48-1 (GND)

Procedure:

  1. Ignition switch off
  2. All doors closed

Below 1 V → Pulse generation

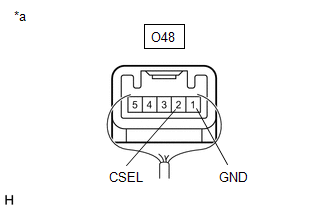

*a

Component with harness connected

(Smart Door Control Receiver Assembly)

(b) Using an oscilloscope, check the waveform.

OK:

Tester Connection

Condition

Tool Setting

Specified Condition

O48-4 (+5) - O48-1 (GND)

Procedure:

  1. Ignition switch off
  2. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
  3. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed

2 V/DIV., 500 ms./DIV.

Pulse generation

(See waveform 1)

*a

Component with harness connected

(Smart Door Control Receiver Assembly)

*b

Waveform 1

*c

Before lock or unlock switch of electrical key transmitter sub-assembly pressed

*d

After lock or unlock switch of electrical key transmitter sub-assembly pressed

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

OK

15.

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Replace the certification ECU (smart key ECU assembly) and perform registration again.

HINT:

  • For replacement.

    Click here

  • For registration.

    Click here

NEXT

16.

CHECK WIRELESS DOOR LOCK CONTROL SYSTEM

(a) Check that the wireless function operates normally.

Click here

Result

Proceed to

Wireless door lock function operates normally

A

Wireless door lock function does not operate normally

B

A

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

17.

INSPECT TRANSMITTER BATTERY

(a) Inspect the transmitter battery.

Click here

NOTICE:

Do not wrap the lead wire around a terminal, wedge it between terminals, or solder it. The terminal may be deformed or damaged, and the transmitter battery will not be able to be installed correctly.

OK

REPLACE ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

NG

REPLACE TRANSMITTER BATTERY

18.

PERFORM REGISTRATION

(a) Perform registration of the B code.

HINT:

Refer to registration (ECU CODE REGISTRATION).

Click here

NEXT

19.

CHECK ENTRY OPERATION

(a) After completing B code registration, check that the entry lock and unlock functions can be operated 2 times consecutively.

Click here

Result

Proceed to

Entry function does not operate normally

A

Entry function operates normally

B

B

END (B CODE REGISTRATION FAILED)

A

20.

READ VALUE USING GTS (B CODE REGISTERED)

(a) Read the Data List according to the display on the GTS.

Body Electrical > Smart Key > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

B Code Registered

B code registration status

No or Yes

No: B code is not registered properly

Yes: B code is registered properly

-

Body Electrical > Smart Key > Data List

Tester Display

B Code Registered

Result

Proceed to

"Yes" is displayed on the GTS

A

"No" is displayed on the GTS

B

B

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

A

21.

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Measure the voltage while checking the Data List on the GTS.

(1) Read the Data List according to the display on the GTS.

*a

Component with harness connected

(Certification ECU (Smart Key ECU Assembly))

-

-

Body Electrical > Power Source Control > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

Power Supply Condition

Power supply state

OFF, ACC ON, IGR ON, IGP ON or Starter ON

OFF: Ignition switch off

ACC ON: Ignition switch ACC

IGR ON: Ignition switch ON

IGP ON: Ignition switch ON

Starter ON: Sending engine start request signal

-

Body Electrical > Power Source Control > Data List

Tester Display

Power Supply Condition

Standard Voltage:

Tester Connection

Switch Condition

Specified Condition

H45-11 (IGRD) - Body ground

Ignition switch off

Below 1 V

Ignition switch ACC

Below 1 V

Ignition switch ON

9 V or higher

H45-24 (IGPD) - Body ground

Ignition switch off

Below 1 V

Ignition switch ACC

Below 1 V

Ignition switch ON

9 V or higher

H46-21 (ACCD) - Body ground

Ignition switch off

Below 1 V

Ignition switch ACC

8.5 V or higher

Ignition switch ON

8.5 V or higher

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

OK

22.

READ VALUE USING GTS (IGR POWER)

(a) Read the Data List according to the display on the GTS.

Body Electrical > Main Body > Data List

Tester Display

Measurement Item

Range

Normal Condition

Diagnostic Note

IGR Power

Ignition switch status

OFF or ON

OFF: Ignition switch off

ON: Ignition switch ON

-

Body Electrical > Main Body > Data List

Tester Display

IGR Power

HINT:

If the certification ECU (smart key ECU assembly) misjudges for any reason that the ignition switch is ON even though the ignition switch is off, the entry lock and unlock functions will be disabled.

Result

Proceed to

The main body ECU (multiplex network body ECU) judges properly that the power source is off when the ignition switch is off

A

The main body ECU (multiplex network body ECU) does not judge properly that the power source is off when the ignition switch is off

B

B

TROUBLESHOOT MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

A

23.

CHECK ENTRY OPERATION

(a) Disconnect and reconnect the certification ECU (smart key ECU assembly) connectors.

(b) Check that the function operates normally.

Click here

Result

Proceed to

Entry function does not operate normally

A

Entry function operates normally

B

B

END (CONNECTOR WAS NOT CONNECTED SECURELY)

A

24.

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Replace the certification ECU (smart key ECU assembly) with a new one and perform registration again.

HINT:

  • For replacement.

    Click here

  • For registration.

    Click here

NEXT

25.

CHECK WIRELESS DOOR LOCK CONTROL SYSTEM

(a) Check that the function operates normally.

Click here

Result

Proceed to

Wireless door lock function operates normally

A

Wireless door lock function does not operate normally

B

A

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

26.

CHECK WAVE ENVIRONMENT

(a) Bring the electrical key transmitter sub-assembly near the smart door control receiver assembly and perform a wireless operation 2 or more times*.

  • *: When the wireless function is operated, channel 1 and 2 are used alternately. If the first wireless operation is performed successfully and the second wireless operation fails, wave interference may be occurring for either channel.

HINT:

  • When the electrical key transmitter sub-assembly is brought near the smart door control receiver assembly, the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
  • If the inspection result is that the problem only occurs in certain locations or at certain times of day, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.
  • There may be wave interference if the vehicle is near broadcasting antennas, large video displays, wireless garage door opener systems, wireless security cameras, home security systems, etc. In this case, move the vehicle to a different location and check if there is any improvement.
  • If a tool for checking radio waves, such as a signal strength meter, is available, move around the area while observing both the LF band (used by the vehicle antenna to form the detection area) and RF band (used by the electrical key transmitter sub-assembly for transmission) to check for locations where there is wave interference.

Result

Proceed to

Wireless function does not operate normally

A

Wireless function operates normally 1 or more times.

B

B

AFFECTED BY WAVE INTERFERENCE

A

27.

CHECK ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY

(a) Check if there is another electrical key transmitter sub-assembly available that is already registered to the vehicle.

Result

Proceed to

Another registered electrical key transmitter sub-assembly is not available

A

Another registered electrical key transmitter sub-assembly is available

B

B

GO TO STEP 29

A

28.

ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY REGISTRATION (NEW ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY)

(a) Register a new electrical key transmitter sub-assembly.

NEXT

29.

CHECK KEY DIAGNOSTIC MODE

(a) Enter key diagnostic mode and select the channel for which the wireless door lock buzzer did not sound and perform the inspection again using a different electrical key transmitter sub-assembly than was used in the initial inspection.

Body Electrical > Smart Key > Utility

Tester Display

Communication Check(Key Diag Mode)

Result

Proceed to

Wireless buzzer does not sound

A

Wireless buzzer sounds

B

B

END (ELECTRICAL KEY TRANSMITTER SUB-ASSEMBLY WAS DEFECTIVE)

A

30.

CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) - SMART DOOR CONTROL RECEIVER ASSEMBLY)

(a) Disconnect the O48 smart door control receiver assembly connector.

(b) Disconnect the O47 certification ECU (smart key ECU assembly) connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

O48-2 (CSEL) - O47-12 (CSEL)

Always

Below 1 Ω

O48-2 (CSEL) or O47-12 (CSEL) - Other terminals and body ground

Always

10 kΩ or higher

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

OK

31.

CHECK ENTRY OPERATION

(a) Connect all connectors and check that the function operates normally.

Click here

Result

Proceed to

Entry function does not operate normally

A

Entry function operates normally

B

B

END (CONNECTOR WAS NOT CONNECTED SECURELY)

A

32.

CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

O48-2 (CSEL) - O48-1 (GND)

Procedure:

  1. Ignition switch off
  2. All doors closed

Below 1 V → Pulse generation

*a

Component with harness connected

(Smart Door Control Receiver Assembly)

NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

OK

33.

CHECK SMART DOOR CONTROL RECEIVER ASSEMBLY

(a) Enter key diagnostic mode and select the channel for which the wireless buzzer did not sound.

Body Electrical > Smart Key > Utility

Tester Display

Communication Check(Key Diag Mode)

(b) Using an oscilloscope, check the waveform.

OK:

Tester Connection

Condition

Tool Setting

Specified Condition

O48-5 (DATA) - O48-1 (GND)

Procedure:

  1. Ignition switch off
  2. All doors locked
  3. Electrical key transmitter sub-assembly not inside vehicle
  4. Electrical key transmitter sub-assembly brought outside detection area but kept inside wireless function operational area
  5. Lock or unlock switch of electrical key transmitter sub-assembly not pressed → pressed

5 V/DIV., 500 ms./DIV.

Pulse generation

(See waveform 1)

HINT:

Inspection should be performed while the electrical key antenna check in key diagnostic mode is being performed on the failed channel (the channel in which the buzzer did not sound).

*a

Component with harness connected

(Smart Door Control Receiver Assembly)

*b

Waveform 1

*c

Before lock or unlock switch of electrical key transmitter sub-assembly pressed

*d

After lock or unlock switch of electrical key transmitter sub-assembly pressed

NG

REPLACE SMART DOOR CONTROL RECEIVER ASSEMBLY

OK

34.

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

(a) Replace the certification ECU (smart key ECU assembly) and perform registration again.

HINT:

  • For replacement.

    Click here

  • For replacement.

    Click here

NEXT

35.

CHECK WIRELESS DOOR LOCK CONTROL SYSTEM

(a) Check that the function operates normally.

Click here

Result

Proceed to

Wireless door lock function operates normally

A

Wireless door lock function does not operate normally

B

A

END (CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) WAS DEFECTIVE)

B

REPLACE MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

    Outside Luggage Compartment (Back Door) Electrical key Antenna Circuit Open (B27A813)

    DESCRIPTION The certification ECU (smart key ECU assembly) generates a request signal and transmits the signal to the electrical key antenna (outside luggage compartment)...

    All Door Entry Lock/Unlock Functions do not Operate, but Wireless Functions Operate

    DESCRIPTION When the wireless operation can be used to lock and unlock the doors, communication between the smart door control receiver assembly and certification ECU (smart key ECU assembly) is normal...

    Other information:

    Toyota Yaris XP210 (2020-2024) Owner's Manual: Low Speed Pre-Collision System


    The Low Speed Pre-Collision System is designed to reduce damage in the event of a collision by operating the brake control (Low Speed Pre-Collision System brake) when the system’s laser sensor detects a vehicle ahead and determines that a collision with a vehicle ahead is unavoidable...

    Toyota Yaris XP210 (2020-2024) Reapir and Service Manual: Push Start Switch Illumination Circuit


    DESCRIPTION The illuminated entry system controls the push start switch illumination. WIRING DIAGRAM CAUTION / NOTICE / HINT NOTICE: Before replacing the certification ECU (smart key ECU assembly), refer to Registration. Click here PROCEDURE 1...

    Categories

    Break-In Period

    No special break-in is necessary, but a few precautions in the first 600 miles (1,000 km) may add to the performance, economy, and life of the vehicle.

    Do not race the engine. Do not maintain one constant speed, either slow or fast, for a long period of time. Do not drive constantly at full-throttle or high engine rpm for extended periods of time. Avoid unnecessary hard stops. Avoid full-throttle starts.

    read more


    Copyright © 2024 www.toyaris4.com
