COMPONENTS

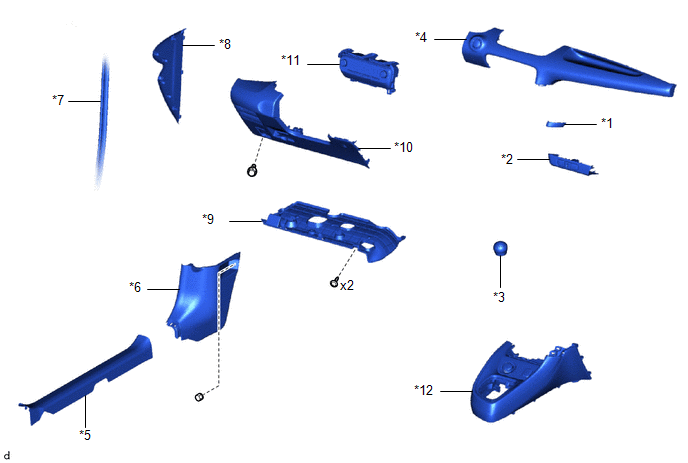

ILLUSTRATION

*1

CENTER LOWER INSTRUMENT COVER

*2

SWITCH HOLE BASE SUB-ASSEMBLY

*3

SHIFT LEVER KNOB SUB-ASSEMBLY

*4

LOWER INSTRUMENT PANEL FINISH PANEL

*5

FRONT DOOR SCUFF PLATE LH

*6

COWL SIDE TRIM BOARD LH

*7

FRONT DOOR OPENING TRIM WEATHERSTRIP LH

*8

NO. 1 INSTRUMENT SIDE PANEL

*9

NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

*10

LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY

*11

AIR CONDITIONING CONTROL ASSEMBLY

*12

CONSOLE BOX ASSEMBLY

    Air Conditioning Panel

    ..

    Removal

    REMOVAL PROCEDURE 1. REMOVE CENTER LOWER INSTRUMENT COVER Click here 2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL Click here 3. REMOVE SWITCH HOLE BASE SUB-ASSEMBLY Click here 4...
