Toyota Yaris: Front Seat Cushion Heater / Installation
INSTALLATION
CAUTION / NOTICE / HINT
CAUTION:
Wear protective gloves. Sharp areas on the parts may injure your hands.
HINT:
- Use the same procedure for the driver side and front passenger side.
- The procedure listed below is for the driver side.
PROCEDURE
1. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY

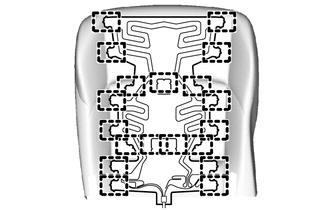

| (a) for Sporty Seat Type: (1) Install the front seat cushion heater assembly to the separate type front seat cushion cover with 19 new tag pins. |
|
| (b) for Sports Seat Type: (1) Install the front seat cushion heater assembly to the separate type front seat cushion cover with 19 new tag pins. |
|
2. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER
Click here
3. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD
Click here
4. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY
Click here
5. INSTALL FRONT SEAT INNER CUSHION SHIELD
Click here
6. INSTALL FRONT SEAT CUSHION SHIELD
Click here
7. INSTALL SEAT ADJUSTER COVER CAP (for Driver Side)
Click here
8. INSTALL RECLINING ADJUSTER RELEASE HANDLE
Click here
9. INSTALL NO.1 RECLINING HINGE COVER
Click here
10. INSTALL FRONT SEAT VERTICAL ADJUSTER HANDLE (for Driver Side)
Click here
11. INSTALL FRONT SEAT INNER BELT ASSEMBLY
Click here
Inspection
INSPECTION PROCEDURE 1. INSPECT FRONT SEAT CUSHION HEATER ASSEMBLY LH (a) Check the resistance. (1) Measure the resistance according to the value(s) in the table below...
