Toyota Yaris: Instrument Panel Safety Pad / Disassembly
DISASSEMBLY
PROCEDURE
1. REMOVE NO. 1 SIDE DEFROSTER NOZZLE
| (a) Disengage the claws and guides to remove the No. 1 side defroster nozzle. |
|
2. REMOVE NO. 2 SIDE DEFROSTER NOZZLE
HINT:
Use the same procedure as for the No. 1 side.
3. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY

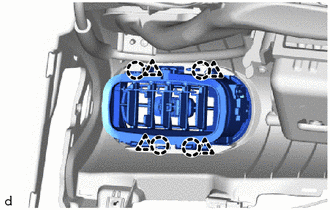

| (a) Disengage the clips and claws to remove the No. 2 instrument panel register assembly. |
|
4. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
HINT:
Use the same procedure as for the No. 2 side.
5. REMOVE NO. 1 SIDE DEFROSTER NOZZLE DUCT

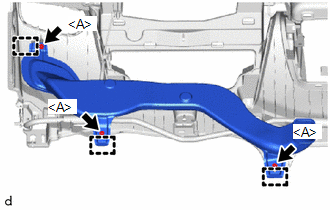

| (a) Remove the 3 screws <A>. |
|
(b) Disengage the guides to remove the No. 1 side defroster nozzle duct.
6. REMOVE NO. 2 SIDE DEFROSTER NOZZLE DUCT

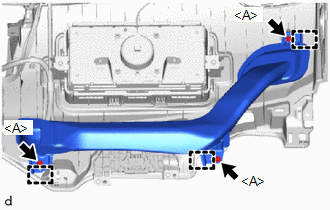

| (a) Remove the 3 screws <A>. |
|
(b) Disengage the guides to remove the No. 2 side defroster nozzle duct.
7. REMOVE INSTRUMENT CLUSTER FINISH PANEL ORNAMENT
| (a) Disengage the claws and guide to remove the instrument cluster finish panel ornament. |
|
8. REMOVE NO. 2 INSTRUMENT PANEL WIRE
Click here
9. REMOVE INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY
Click here
10. REMOVE ANTENNA CORD SUB-ASSEMBLY
Click here
Components
COMPONENTS ILLUSTRATION
*1 FRONT PILLAR GARNISH LH *2 FRONT PILLAR GARNISH RH *3 FRONT DOOR OPENING TRIM WEATHERSTRIP LH *4 FRONT DOOR OPENING TRIM WEATHERSTRIP RH *5 NO...
Reassembly
REASSEMBLY PROCEDURE 1. INSTALL ANTENNA CORD SUB-ASSEMBLY Click here
2. INSTALL INSTRUMENT PANEL PASSENGER WITHOUT DOOR AIRBAG ASSEMBLY Click here
3...
