Toyota Yaris: Generator / Removal
REMOVAL
CAUTION / NOTICE / HINT
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
-
Learning completes when vehicle is driven
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Lane tracing assist system
Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.
Pre-collision system
Stop and start system
Drive the vehicle until stop and start control is permitted (approximately 5 to 60 minutes)
-
Learning completes when vehicle is operated normally
Effect/Inoperative Function When Necessary Procedures are not Performed
Necessary Procedures
Link
Power door lock control system
- Back door opener
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.
Air conditioning system
After the ignition switch is turned to ON, the servo motor standard position is recognized.
-
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary batteryterminal.
Click here
2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
Click here
3. REMOVE V-RIBBED BELT
Click here
4. REMOVE GENERATOR WITH REGULATOR ASSEMBLY

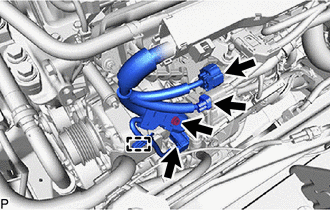

| (a) Disengage the clamp. |
|
(b) Disconnect the 3 connectors.
(c) Open the terminal cap.
(d) Remove the nut and disconnect the wire harness from terminal B.
| (e) Remove the 2 nuts and generator splash guard cover assembly. |
|

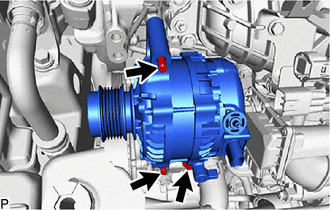

| (f) Remove the bolt. |
|
(g) Using an E8 "TORX" socket wrench, remove the 2 stud bolts and generator with regulator assembly.
Components
COMPONENTS ILLUSTRATION
*1 GENERATOR WITH REGULATOR ASSEMBLY *2 ENGINE WIRE *3 GENERATOR SPLASH GUARD COVER ASSEMBLY *4 STUD BOLT
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft...
Inspection
INSPECTION PROCEDURE 1. INSPECT GENERATOR PULLEY WITH CLUTCH (a) Hold the center of the generator pulley with clutch, and confirm that the outer ring turns counterclockwise and does not turn clockwise...
