Toyota Yaris: Network Gateway Ecu / Components

Toyota Yaris XP210 (2020-2024) Reapir and Service Manual / Power Source & Network / Networking / Network Gateway Ecu / Components

COMPONENTS

ILLUSTRATION

*1

COWL SIDE TRIM BOARD RH

*2

FRONT DOOR SCUFF PLATE RH

*3

FRONT DOOR OPENING TRIM WEATHERSTRIP RH

*4

GLOVE COMPARTMENT DOOR ASSEMBLY

*5

LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

*6

CENTER LOWER INSTRUMENT COVER

*7

LOWER INSTRUMENT PANEL FINISH PANEL

*8

NO. 1 INSTRUMENT SIDE PANEL

*9

NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

*10

SHIFT LEVER KNOB SUB-ASSEMBLY

*11

SWITCH HOLE BASE SUB-ASSEMBLY

*12

CONSOLE BOX ASSEMBLY

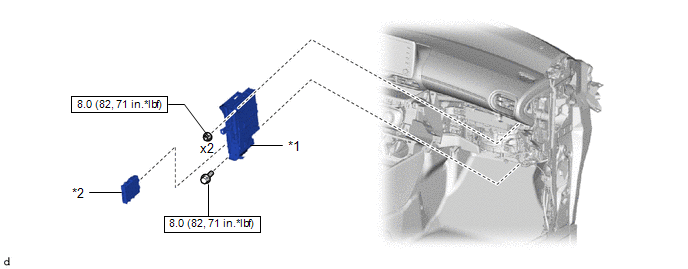

ILLUSTRATION

*1

ECU INTEGRATION BOX RH

*2

CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU)

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

    Network Gateway Ecu

    ..

    Removal

    REMOVAL CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during the central gateway ECU (network gateway ECU) removal/installation are shown below...
